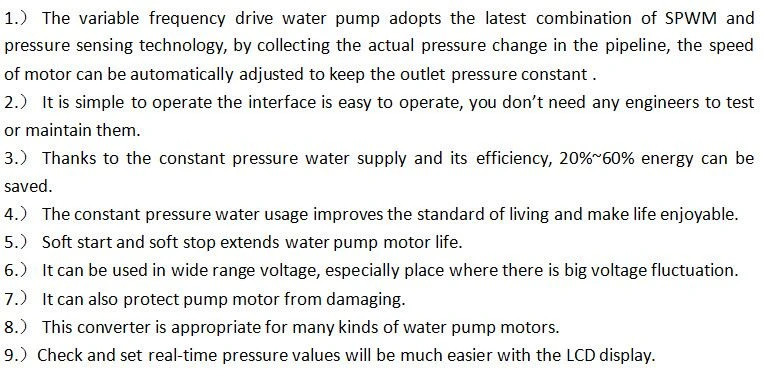

Kipengele cha bidhaa
Maombi
● Mfumo wa ujenzi wa sakafu
● Usambazaji wa maji katika matumizi ya ndani
● Usambazaji wa maji katika matumizi ya kibiashara
● Usambazaji wa maji katika matumizi ya viwandani
● Ugavi wa maji katika mzunguko wa maji moto na baridi
● Usambazaji wa maji katika umwagiliaji na bustani
Uainishaji wa bidhaa

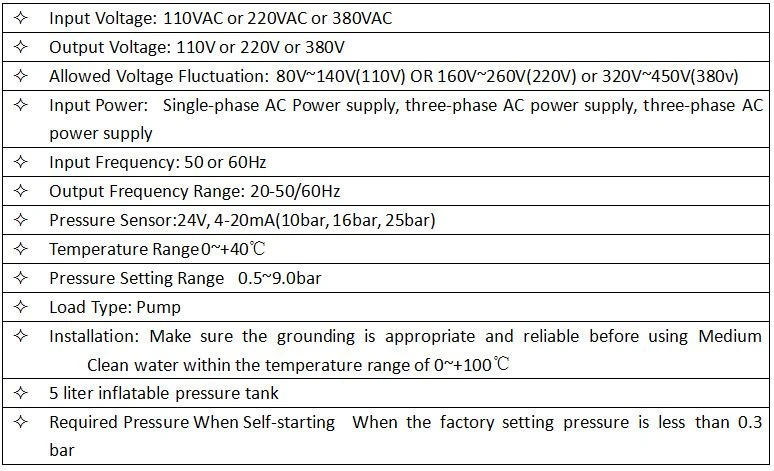

Vigezo vya kiufundi
Mfano | Nguvu | Voltage ya pembejeo | Mtiririko wa kurudi (m3/h) | Kichwa kilichokadiriwa (M) | Mfano wa pampu ya awamu moja | Frequency ya pato | Sensor ya shinikizo |
Vfwi -17 lm/1-18 | 0.25kW | 1x220V | 1.0 | 18 | CMI 1-2 | 20--50 Hz | 4--20 ma, +24 v, (10bar, 16bar, 25bar) |
Vfwi -17 lm/1-25 | 0.25kW | 1x220V | 1.0 | 25 | CMI 1-3 | ||
Vfwi -17 lm/1-33 | 0.37kW | 1x220V | 1.0 | 33 | CMI 1-4 | ||
Vfwi -17 lm/1-38 | 0.37kW | 1x220V | 1.0 | 38 | CMI 1-5 | ||
Vfwi -17 lm/1-46 | 0.37kW | 1x220V | 1.0 | 46 | CMI 1-6 | ||
Vfwi -17 lm/2-18 | 0.25kW | 1x220V | 2.0 | 18 | CMI 2-2 | ||
Vfwi -17 lm/2-24 | 0.37kW | 1x220V | 2.0 | 24 | CMI 2-3 | ||
Vfwi -17 lm/2-32 | 0.55kW | 1x220V | 2.0 | 32 | CMI 2-4 | ||
Vfwi -17 lm/2-40 | 0.55kW | 1x220V | 2.0 | 40 | CMI 2-5 | ||
Vfwi -17 lm/2-47 | 0.75kW | 1x220V | 2.0 | 47 | CMI 2-6 | ||
Vfwi -17 lm/3-15 | 0.25kW | 1x220V | 3.0 | 15 | CMI 3-2 | ||
Vfwi -17 lm/3-21 | 0.37kW | 1x220V | 3.0 | 21 | CMI 3-3 | ||
Vfwi -17 lm/3-28 | 0.55kW | 1x220V | 3.0 | 28 | CMI 3-4 | ||
Vfwi -17 lm/3-34 | 0.55kW | 1x220V | 3.0 | 34 | CMI 3-5 | ||
Vfwi -17 lm/3-38 | 0.75kW | 1x220V | 3.0 | 38 | CMI 3-6 | ||
Vfwi -17 lm/4-15 | 0.37kW | 1x220V | 4.0 | 15 | CMI 4-2 | ||
Vfwi -17 lm/4-25 | 0.55kW | 1x220V | 4.0 | 25 | CMI 4-3 | ||
Vfwi -17 lm/4-30 | 0.75kW | 1x220V | 4.0 | 30 | CMI 4-4 | ||
Vfwi -17 lm/4-40 | 1.0kW | 1x220V | 4.0 | 40 | CMI 4-5 | ||
Vfwi -17 lm/4-49 | 1.3kW | 1x220V | 4.0 | 49 | CMI 4-6 | ||
Vfwi -17 lm/5-13 | 0.37kW | 1x220V | 5.0 | 13 | CMI 5-2 | ||
Vfwi -17 lm/5-22 | 0.55kW | 1x220V | 5.0 | 22 | CMI 5-3 | ||
Vfwi -17 lm/5-27 | 0.75kW | 1x220V | 5.0 | 27 | CMI 5-4 | ||
Vfwi -17 lm/5-35 | 1.0kW | 1x220V | 5.0 | 35 | CMI 5-5 | ||
Vfwi -17 lm/5-44 | 1.3kW | 1x220V | 5.0 | 44 | CMI 5-6 | ||
Vfwi -17 lm/8-12 | 0.55kW | 1x220V | 8.0 | 12 | CMI 8-10 | ||
Vfwi -17 lm/8-20 | 0.75kW | 1x220V | 8.0 | 20 | CMI 8-15 | ||
Vfwi -17 lm/8-24 | 1.0kW | 1x220V | 8.0 | 24 | CMI 8-20 | ||
Vfwi -17 lm/8-27 | 1.5kW | 1x220V | 8.0 | 27 | CMI 8-25 | ||
Vfwi -17 lm/8-9 | 0.55kW | 1x220V | 8.0 | 9 | CMI 8-10 b | ||
Vfwi -17 lm/8-19 | 0.75kW | 1x220V | 8.0 | 19 | CMI 8-20 b | ||
Vfwi -17 lm/8-26 | 1.1kW | 1x220V | 8.0 | 26 | CMI 8-30 b | ||
Vfwi -17 lm/8-37 | 1.5kW | 1x220V | 8.0 | 37 | CMI 8-40 b | ||
Vfwi -17 lm/10-11 | 0.65kW | 1x220V | 10.0 | 11 | CMI 10-1 | ||
Vfwi -17 lm/10-24 | 1.2kW | 1x220V | 10.0 | 24 | CMI 10-2 | ||
Vfwi -17 lm/12-13 | 1KW | 1x220V | 12.0 | 13 | CMI 12-10 | ||
Vfwi -17 lm/12-20 | 1.5kW | 1x220V | 12.0 | 20 | CMI 12-15 | ||
Vfwi -17 lm/12-9 | 0.75kW | 1x220V | 12.0 | 9 | CMI 12-10 b | ||
Vfwi -17 lm/12-19 | 1.1kW | 1x220V | 12.0 | 19 | CMI 12-20 b | ||
Vfwi -17 lm/15-12 | 1.2kW | 1x220V | 15.0 | 12 | CMI 15-1 | ||
Vfwi -17 lm/16-10 | 1KW | 1x220V | 16.0 | 10 | CMI 16-10 | ||
Vfwi -17 lm/16-20 | 1.5kW | 1x220V | 16.0 | 20 | CMI 16-20 | ||
Vfwi -17 lm/20-10 | 1KW | 1x220V | 20.0 | 10 | CMI 20-10 |
Mfano | Nguvu | Voltage ya pembejeo | Mtiririko wa kurudi (m3/h) | Kichwa kilichokadiriwa (M) | Mfano wa pampu ya awamu tatu | Frequency ya pato | Sensor ya shinikizo |
Vfwi -17 ls/1-18 | 0.25kW | 1x220V | 1.0 | 18 | CMI 1-2 t (△) | 20--50 Hz | 4--20 ma, +24 v, (10bar, 16bar, 25bar) |
Vfwi -17 ls/1-25 | 0.25kW | 1x220V | 1.0 | 25 | CMI 1-3 t (△) | ||
Vfwi -17 ls/1-33 | 0.37kW | 1x220V | 1.0 | 33 | CMI 1-4 t (△) | ||
Vfwi -17 ls/1-38 | 0.37kW | 1x220V | 1.0 | 38 | CMI 1-5 t (△) | ||
Vfwi -17 ls/1-46 | 0.37kW | 1x220V | 1.0 | 46 | CMI 1-6 t (△) | ||
Vfwi -17 ls/2-18 | 0.25kW | 1x220V | 2.0 | 18 | CMI 2-2 t (△) | ||
Vfwi -17 ls/2-24 | 0.37kW | 1x220V | 2.0 | 24 | CMI 2-3 t (△) | ||
Vfwi -17 ls/2-32 | 0.55kW | 1x220V | 2.0 | 32 | CMI 2-4 t (△) | ||
Vfwi -17 ls/2-40 | 0.55kW | 1x220V | 2.0 | 40 | CMI 2-5 t (△) | ||
Vfwi -17 ls/2-47 | 0.75kW | 1x220V | 2.0 | 47 | CMI 2-6 t (△) | ||
Vfwi -17 ls/3-15 | 0.25kW | 1x220V | 3.0 | 15 | CMI 3-2 t (△) | ||
Vfwi -17 ls/3-21 | 0.37kW | 1x220V | 3.0 | 21 | CMI 3-3 t (△) | ||
Vfwi -17 ls/3-28 | 0.55kW | 1x220V | 3.0 | 28 | CMI 3-4 t (△) | ||
Vfwi -17 ls/3-34 | 0.55kW | 1x220V | 3.0 | 34 | CMI 3-5 t (△) | ||
Vfwi -17 ls/3-38 | 0.75kW | 1x220V | 3.0 | 38 | CMI 3-6 t (△) | ||
Vfwi -17 ls/4-15 | 0.37kW | 1x220V | 4.0 | 15 | CMI 4-2 t (△) | ||
Vfwi -17 ls/4-25 | 0.55kW | 1x220V | 4.0 | 25 | CMI 4-3 t (△) | ||
Vfwi -17 ls/4-30 | 0.75kW | 1x220V | 4.0 | 30 | CMI 4-4 t (△) | ||
Vfwi -17 ls/4-40 | 1.0kW | 1x220V | 4.0 | 40 | CMI 4-5 t (△) | ||
Vfwi -17 ls/4-49 | 1.3kW | 1x220V | 4.0 | 49 | CMI 4-6 t (△) | ||
Vfwi -17 ls/5-13 | 0.37kW | 1x220V | 5.0 | 13 | CMI 5-2 t (△) | ||
Vfwi -17 ls/5-23 | 0.55kW | 1x220V | 5.0 | 23 | CMI 5-3 t (△) | ||
Vfwi -17 ls/5-27 | 0.75kW | 1x220V | 5.0 | 27 | CMI 5-4 t (△) | ||
Vfwi -17 ls/5-35 | 1.0kW | 1x220V | 5.0 | 35 | CMI 5-5 t (△) | ||
Vfwi -17 ls/5-44 | 1.3kW | 1x220V | 5.0 | 44 | CMI 5-6 t (△) | ||
Vfwi -17 ls/8-12 | 0.55kW | 1x220V | 8.0 | 12 | CMI 8-10 t (△) | ||
Vfwi -17 ls/8-20 | 0.75kW | 1x220V | 8.0 | 20 | CMI 8-15 t (△) | ||
Vfwi -17 ls/8-24 | 1KW | 1x220V | 8.0 | 24 | CMI 8-20 t (△) | ||
Vfwi -17 ls/8-27 | 1.5kW | 1x220V | 8.0 | 27 | CMI 8-25 t (△) | ||
Vfwi -17 ls/8-36 | 1.85kW | 1x220V | 8.0 | 36 | CMI 8-30 t (△) | ||
Vfwi -17 ls/8-43 | 2.2kW | 1x220V | 8.0 | 43 | CMI 8-35 t (△) | ||
Vfwi -17 ls/8-48 | 2.2kW | 1x220V | 8.0 | 48 | CMI 8-40 t (△) | ||
Vfwi -17 ls/8-9 | 0.55kW | 1x220V | 8.0 | 9 | CMI 8-10 bt (△) | ||
Vfwi -17 ls/8-19 | 0.75kW | 1x220V | 8.0 | 19 | CMI 8-20 bt (△) | ||
Vfwi -17 ls/8-26 | 1.1kW | 1x220V | 8.0 | 26 | CMI 8-30 bt (△) | ||
Vfwi -17 ls/8-37 | 1.5kW | 1x220V | 8.0 | 37 | CMI 8-40 bt (△) | ||
Vfwi -17 ls/8-46 | 2.2kW | 1x220V | 8.0 | 46 | CMI 8-50 bt (△) | ||
Vfwi -17 ls/10-11 | 0.65kW | 1x220V | 10.0 | 11 | CMI 10-1 t (△) | ||
Vfwi -17 ls/10-24 | 1.2kW | 1x220V | 10.0 | 24 | CMI 10-2 t (△) | ||
Vfwi -17 ls/10-37 | 2.2kW | 1x220V | 10.0 | 37 | CMI 10-3 t (△) | ||
Vfwi -17 ls/12-13 | 1KW | 1x220V | 12.0 | 13 | CMI 12-10 t (△) | ||
Vfwi -17 ls/12-20 | 1.5kW | 1x220V | 12.0 | 20 | CMI 12-15 t (△) | ||
Vfwi -17 ls/12-28 | 1.65kW | 1x220V | 12.0 | 28 | CMI 12-20 t (△) | ||
Vfwi -17 ls/12-33 | 2.2kW | 1x220V | 12.0 | 33 | CMI 12-25 t (△) | ||
Vfwi -17 ls/12-9 | 0.75kW | 1x220V | 12.0 | 9 | CMI 12-10 bt (△) | ||
Vfwi -17 ls/12-19 | 1.1kW | 1x220V | 12.0 | 19 | CMI 12-20 bt (△) | ||
Vfwi -17 ls/12-29 | 1.85kW | 1x220V | 12.0 | 29 | CMI 12-30 bt (△) | ||
Vfwi -17 ls/12-39 | 2.2kW | 1x220V | 12.0 | 39 | CMI 12-40 bt (△) | ||
Vfwi -17 ls/15-12 | 1.2kW | 1x220V | 15.0 | 12 | CMI 15-1 t (△) | ||
Vfwi -17 ls/15-29 | 2.2kW | 1x220V | 15.0 | 29 | CMI 15-2 t (△) | ||
Vfwi -17 ls/16-10 | 1KW | 1x220V | 16.0 | 10 | CMI 16-10 t (△) | ||
Vfwi -17 ls/16-20 | 1.5kW | 1x220V | 16.0 | 20 | CMI 16-20 t (△) | ||
Vfwi -17 ls/16-30 | 2.2kW | 1x220V | 16.0 | 30 | CMI 16-30 t (△) | ||
Vfwi -17 ls/20-10 | 1KW | 1x220V | 20.0 | 10 | CMI 20-10 t (△) | ||
Vfwi -17 ls/20-20 | 1.85kW | 1x220V | 20.0 | 20 | CMI 20-20 t (△) |
Mfano | Nguvu | Voltage ya pembejeo | Mtiririko wa kurudi (m3/h) | Kichwa kilichokadiriwa (M) | Mfano wa pampu ya awamu tatu | Frequency ya pato | Sensor ya shinikizo |
Vfwi -17 lt/1-18 | 0.25kW | 3x380V | 1.0 | 18 | CMI 1-2 t (y) | 20--50 Hz | 4--20 ma, +24 v, (10bar, 16bar, 25bar) |
Vfwi -17 lt/1-25 | 0.25kW | 3x380V | 1.0 | 25 | CMI 1-3 t (y) | ||
Vfwi -17 lt/1-33 | 0.37kW | 3x380V | 1.0 | 33 | CMI 1-4 t (y) | ||
Vfwi -17 lt/1-38 | 0.37kW | 3x380V | 1.0 | 38 | CMI 1-5 t (y) | ||
Vfwi -17 lt/1-46 | 0.37kW | 3x380V | 1.0 | 46 | CMI 1-6 t (y) | ||
Vfwi -17 lt/2-18 | 0.25kW | 3x380V | 2.0 | 18 | CMI 2-2 t (y) | ||
Vfwi -17 lt/2-24 | 0.37kW | 3x380V | 2.0 | 24 | CMI 2-3 t (y) | ||
Vfwi -17 lt/2-32 | 0.55kW | 3x380V | 2.0 | 32 | CMI 2-4 t (y) | ||
Vfwi -17 lt/2-40 | 0.55kW | 3x380V | 2.0 | 40 | CMI 2-5 t (y) | ||
Vfwi -17 lt/2-47 | 0.75kW | 3x380V | 2.0 | 47 | CMI 2-6 t (y) | ||
Vfwi -17 lt/3-15 | 0.25kW | 3x380V | 3.0 | 15 | CMI 3-2 t (y) | ||
Vfwi -17 lt/3-21 | 0.37kW | 3x380V | 3.0 | 21 | CMI 3-3 t (y) | ||
Vfwi -17 lt/3-28 | 0.55kW | 3x380V | 3.0 | 28 | CMI 3-4 t (y) | ||
Vfwi -17 lt/3-34 | 0.55kW | 3x380V | 3.0 | 34 | CMI 3-5 t (y) | ||
Vfwi -17 lt/3-38 | 0.75kW | 3x380V | 3.0 | 38 | CMI 3-6 t (y) | ||
Vfwi -17 lt/4-15 | 0.37kW | 3x380V | 4.0 | 15 | CMI 4-2 t (y) | ||
Vfwi -17 lt/4-25 | 0.55kW | 3x380V | 4.0 | 25 | CMI 4-3 t (y) | ||
Vfwi -17 lt/4-30 | 0.75kW | 3x380V | 4.0 | 30 | CMI 4-4 t (y) | ||
Vfwi -17 lt/4-40 | 1.0kW | 3x380V | 4.0 | 40 | CMI 4-5 t (y) | ||
Vfwi -17 lt/4-49 | 1.3kW | 3x380V | 4.0 | 49 | CMI 4-6 t (y) | ||
Vfwi -17 lt/5-13 | 0.37kW | 3x380V | 5.0 | 13 | CMI 5-2 t (y) | ||
Vfwi -17 lt/5-23 | 0.55kW | 3x380V | 5.0 | 23 | CMI 5-3 t (y) | ||
Vfwi -17 lt/5-27 | 0.75kW | 3x380V | 5.0 | 27 | CMI 5-4 t (y) | ||
Vfwi -17 lt/5-35 | 1.0kW | 3x380V | 5.0 | 35 | CMI 5-5 t (y) | ||
Vfwi -17 lt/5-44 | 1.3kW | 3x380V | 5.0 | 44 | CMI 5-6 t (y) | ||
Vfwi -17 lt/8-12 | 0.55kW | 3x380V | 8.0 | 12 | CMI 8-10 t (y) | ||
Vfwi -17 lt/8-20 | 0.75kW | 3x380V | 8.0 | 20 | CMI 8-15 t (y) | ||
Vfwi -17 lt/8-24 | 1KW | 3x380V | 8.0 | 24 | CMI 8-20 t (y) | ||
Vfwi -17 lt/8-27 | 1.5kW | 3x380V | 8.0 | 27 | CMI 8-25 t (y) | ||
Vfwi -17 lt/8-36 | 1.85kW | 3x380V | 8.0 | 36 | CMI 8-30 t (y) | ||
Vfwi -17 lt/8-43 | 2.2kW | 3x380V | 8.0 | 43 | CMI 8-35 t (y) | ||
Vfwi -17 lt/8-48 | 2.2kW | 3x380V | 8.0 | 48 | CMI 8-40 t (y) | ||
Vfwi -17 lt/8-9 | 0.55kW | 3x380V | 8.0 | 9 | CMI 8-10 bt (y) | ||
Vfwi -17 lt/8-19 | 0.75kW | 3x380V | 8.0 | 19 | CMI 8-20 bt (y) | ||
Vfwi -17 lt/8-26 | 1.1kW | 3x380V | 8.0 | 26 | CMI 8-30 bt (y) | ||
Vfwi -17 lt/8-37 | 1.5kW | 3x380V | 8.0 | 37 | CMI 8-40 bt (y) | ||
Vfwi -17 lt/8-46 | 2.2kW | 3x380V | 8.0 | 46 | CMI 8-50 bt (y) | ||
Vfwi -17 lt/8-52 | 3kW | 3x380V | 8.0 | 52 | CMI 8-60 bt (y) | ||
Vfwi -17 lt/10-11 | 0.65kW | 3x380V | 10.0 | 11 | CMI 10-1 t (y) | ||
Vfwi -17 lt/10-24 | 1.2kW | 3x380V | 10.0 | 24 | CMI 10-2 t (y) | ||
Vfwi -17 lt/10-37 | 2.2kW | 3x380V | 10.0 | 37 | CMI 10-3 t (y) | ||
Vfwi -17 lt/10-52 | 3kW | 3x380V | 10.0 | 52 | CMI 10-4 t (y) | ||
Vfwi -17 lt/10-65 | 3kW | 3x380V | 10.0 | 65 | CMI 10-5 t (y) | ||
Vfwi -17 lt/12-13 | 1KW | 3x380V | 12.0 | 13 | CMI 12-10 t (y) | ||
Vfwi -17 lt/12-20 | 1.5kW | 3x380V | 12.0 | 20 | CMI 12-15 t (y) | ||
Vfwi -17 lt/12-28 | 1.65kW | 3x380V | 12.0 | 28 | CMI 12-20 t (y) | ||
Vfwi -17 lt/12-33 | 2.2kW | 3x380V | 12.0 | 33 | CMI 12-25 t (y) | ||
Vfwi -17 lt/12-39 | 3kW | 3x380V | 12.0 | 39 | CMI 12-30 t (y) | ||
Vfwi -17 lt/12-9 | 0.75kW | 3x380V | 12.0 | 9 | CMI 12-10 bt (y) | ||
Vfwi -17 lt/12-19 | 1.1kW | 3x380V | 12.0 | 19 | CMI 12-20 bt (y) | ||
Vfwi -17 lt/12-29 | 1.85kW | 3x380V | 12.0 | 29 | CMI 12-30 bt (y) | ||
Vfwi -17 lt/12-39 | 2.2kW | 3x380V | 12.0 | 39 | CMI 12-40 bt (y) | ||
Vfwi -17 lt/12-50 | 3kW | 3x380V | 12.0 | 50 | CMI 12-50 bt (y) | ||
Vfwi -17 lt/15-12 | 1.2kW | 3x380V | 15.0 | 12 | CMI 15-1 t (y) | ||
Vfwi -17 lt/15-29 | 2.2kW | 3x380V | 15.0 | 29 | CMI 15-2 t (y) | ||
Vfwi -17 lt/15-44 | 4kW | 3x380V | 15.0 | 44 | CMI 15-3 t (y) | ||
Vfwi -17 lt/15-61 | 5.5kW | 3x380V | 15.0 | 61 | CMI 15-4 t (y) | ||
Vfwi -17 lt/16-10 | 1KW | 3x380V | 16.0 | 10 | CMI 16-10 t (y) | ||
Vfwi -17 lt/16-20 | 1.5kW | 3x380V | 16.0 | 20 | CMI 16-20 t (y) | ||
Vfwi -17 lt/16-30 | 2.2kW | 3x380V | 16.0 | 30 | CMI 16-30 t (y) | ||
Vfwi -17 lt/16-40 | 3kW | 3x380V | 16.0 | 40 | CMI 16-40 t (y) | ||
Vfwi -17 lt/20-10 | 1KW | 3x380V | 20.0 | 10 | CMI 20-10 t (y) | ||
Vfwi -17 lt/20-20 | 1.85kW | 3x380V | 20.0 | 20 | CMI 20-20 t (y) | ||
Vfwi -17 lt/20-31 | 3kW | 3x380V | 20.0 | 31 | CMI 20-30 t (y) |
Maswali
Swali: Je! Ni maelezo gani ya ufungaji wa bidhaa hii?
A: 1pce/ kesi ya mbao .
Swali: Je! Kuna huduma za OEM au ubinafsishaji wa rangi?
J: MOQ kwa OEM ni pc 1000 kwa kila mfano kwa wakati mmoja .
Swali: Je! Muundo wa pampu yako ya masafa ya kutofautisha ni nini?
A: VFD Inverter + Bomba la Maji .
Swali: Je! Ni nyenzo gani mwili wa pampu, casing na msukumo?
J: Mwili wa pampu na msukumo hufanywa kwa chuma cha pua .
Swali: Je! Muhuri wa pampu ya maji ya VFD ni aina ya muhuri wa mitambo au aina ya ufungaji?
A: Aina ya Muhuri wa Mitambo .
Swali: Faida za pampu za maji za frequency zinazobadilika:
J: Kubadilika kwa mzunguko wa shinikizo la maji ya kila wakati, lakini pia kuokoa nishati ya frequency, ulinzi wa mazingira .
Swali: Je! Ni wakati gani wa kuongoza?
A: Kuanzia siku 23 hadi 51 za kufanya kazi .
Moto Moto: pampu ya maji ya kutofautisha ya akili, Uchina, wauzaji, kiwanda, umeboreshwa, nafuu, bei, nukuu
